The security light never goes out to tell me that it accepted the key.

Where in the ever loving hell is the passlock module on this thing. Short of completely pulling the dash I haven’t been able to find it yet.

I'll see if I can find a picture from when I had my dash out. You don't need to pull the dash to access it, but if I can find something, it may at least give you a better idea where to look.

_________________

Bose Luxury Sound System w/Touch Screen Navigation, Addition of Factory XM, 2005 MY Antenna, OnStar Upgrade (3G),
RainSense Wipers, Backup Camera, '00 Style Door Panel Courtesy Lights, Heated Washer Solvent, 2X Remote Trunk Release,
Turn Signal Mirrors, Center Console Courtesy Lamp, Rear Outboard Heated Seats, PVD Chrome 18" Factory Rims, Upgraded
Carbon Fibre Appearance Interior Trim, Highly Modified Main Body Harness, Instrument Panel, Door, Door Panel & Headliner
Wiring Harnesses, Custom Fuse Box & Tire and Loading Information Decals, Additional Acoustic Insulation[/size][/color]

With the scanner hooked up and watching the live data I can watch the key being cycled, I don’t remember exactly what it was called vtd something, when I cycled from off to run I could watch and it would go from ignition off to saying no coded key. I have a persistent b3055 code “no modulation”.

So now if you aren't getting the other DTC's you originally reported, it's possible that this extra wiring/bypass attempts were actually the cause of them. One example for instance, the exciter is only powered very briefly while it tries to check the key and anything longer than 1 second will set a fault code. Since you're not reporting anything except the B3055 now, I'm not as suspicious of the exciter or VTD module. The live data also seems to support activity as you cycle the key.

One thing to consider that's a fairly inexpensive option is to go to the dealer, get a new key cut and try to learn it. To make sure everything is 100%, I would use a dealer key and not some generic from another source that may or may not be properly compatible. The best case scenario is that this fixes your problem. The worst case scenario is that you now have a spare key once the problem is resolved. Let's face it, having a spare key is never a bad idea anyway.

Does the key you have actually show a Pontiac logo on the black plastic, or does it appear to be a generic key?

_________________

Bose Luxury Sound System w/Touch Screen Navigation, Addition of Factory XM, 2005 MY Antenna, OnStar Upgrade (3G),
RainSense Wipers, Backup Camera, '00 Style Door Panel Courtesy Lights, Heated Washer Solvent, 2X Remote Trunk Release,
Turn Signal Mirrors, Center Console Courtesy Lamp, Rear Outboard Heated Seats, PVD Chrome 18" Factory Rims, Upgraded
Carbon Fibre Appearance Interior Trim, Highly Modified Main Body Harness, Instrument Panel, Door, Door Panel & Headliner
Wiring Harnesses, Custom Fuse Box & Tire and Loading Information Decals, Additional Acoustic Insulation[/size][/color]

It’s a Pontiac key. Depending on how much I tinker with it I also get the antenna shorted to battery code. If I clear it I instantly get the b3055 code back. I’ll get a new gym key cut.

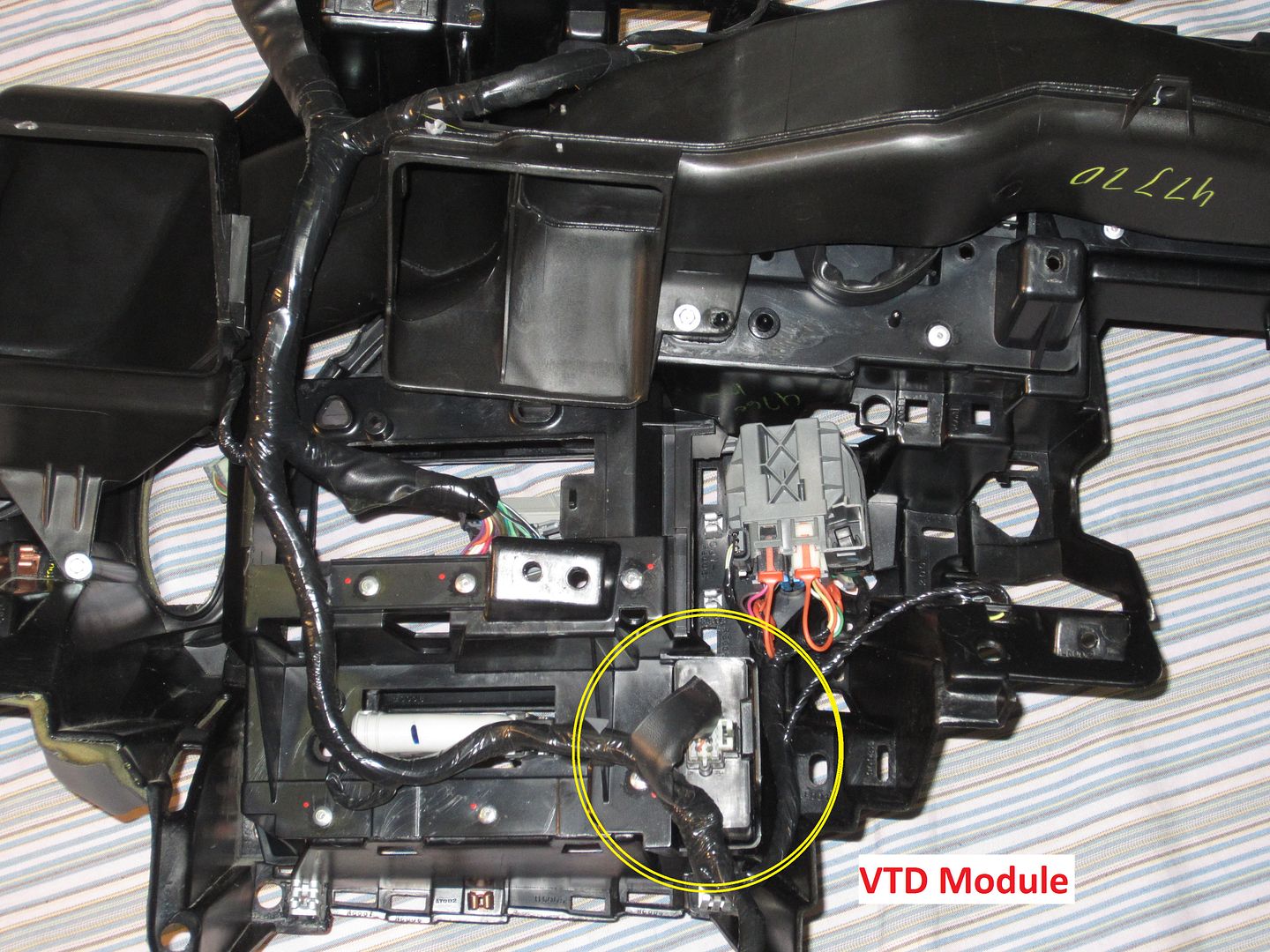

For reference, here is where the VTD module is located. It's unlikely this is the problem though. This picture is from the back of the dash. If you're looking at the dash head on, it's below the key module and immediately left of the climate control head. You might be able to see that it clips into the dash if you zoom in on the picture. The tab will be on the left side (if you're facing it from the front, right side in this photo).
